Transitions
Transitions in Automation Builder Generation 2 behave a bit differently from transitions in Generation 1. Each task is only permitted to have one outgoing transition of each type (success, failure, and error), and loop and revert transitions are not supported.
The only exception to the one transition per task rule is the decision task. This task is used to choose an execution path among a sets of options based.
Adding Success Transitions
To add a transition between two unconnected tasks, click the Add Transition button to enter Add Transition Mode and click a task to transition to.
Add Transition

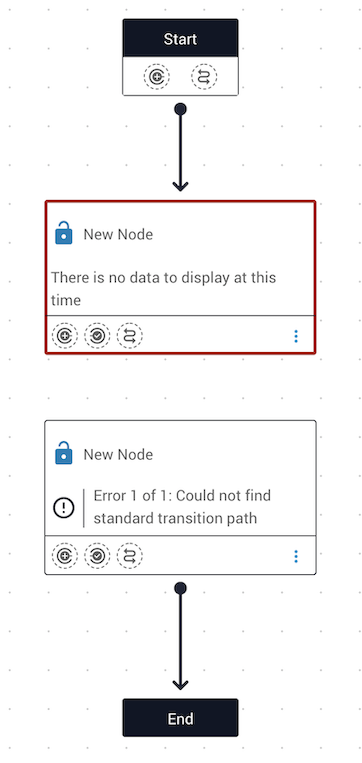

When hovering over a task while in Add Transition Mode, tasks which may be transitioned to will outline in green, while tasks that may not be transitioned to will outline in red. To find out why a particular task may not be transitioned to, click it to create a toast with a warning message explaining the violated rule.
Add Transition Mode: Green
Add Transition Mode: Red
Press the escape key or click on the empty canvas space to exit Add Transition Mode without adding a transition.
Adding Failure Handlers
To handle task failures, select the task to handle and use the Failure Handler settings of the Details tab in the Edit Task Menu.
Failure Handler
To use another task to handle failures in the current task, select the Task radio button option and either select the New Task option to create and connect to a new empty task, or select an existing task from the dropdown.
Failure Transition
To terminate the automation on task failure, use the associated radio button setting: End the automation.
Adding Error Handlers
To handle task errors, select the task to handle and use the Error Handler settings of the Details tab in the Edit Task Menu.
Error Handler
To use another task to handle errors in the current task, select the Task radio button option and either select the New Task option to create and connect to a new empty task, or select an existing task from the dropdown.
To terminate the automation on task failure, use the associated radio button setting: End the automation.
To use the automation-wide Error handler automation, select the third option in the menu.
Error Transition
Changing Error and Failure Visibility
Use the Visibility toggle button in the Primary actions menu to make the error and failure transitions and their tasks transparent.
Visibility Toggle
Visibility On
Visibility Off
